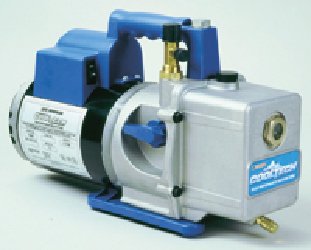

Two Stage Vacuum Pump - 6 CFM
Features include: Thoroughly evacuate todays tighter systems with their increased sensitivity to contaminants. Iso-ValveTM isolates pump from system, making it easy to measure rate of rise. Offset rotary vanes work in conjunction with the vacuum pump oil to create a powerful compression inside the pumping chamber. Vacuum pump efficiency depends largely on the purity of the vacuum pump oil. The gas ballast feature helps keep the oil clean for a longer time by introducing a small amount of dry atmospheric air to prevent condensation of moisture within the pumping chamber. Two stage design for greater efficiencythe second stage of the two-stage design starts pumping at a lower pressure to pull a deeper ultimate vacuum. The inlet filter prevents contaminants from entering the pumping chamber; check valve prevents oil from backing up into system during a power outage. The power switch is located on the handle assemblyto protect it from accidentally being turned on or off. Specifications: Minimum Cold Start Temperature 32 degree F (0 degree C). Intake Fitting 1/2 " ACME and 1/4 " MFL. Free Air Displacement 6 CFM. Dimensions 55/8" W x 9 3/4 " H x 15" L (14.25 cm x 24.7 cm x 38.1 cm). Weight 32 lbs. 14.5 kg. Oil Capacity 15 oz. (445 ml). Voltage 115V 60 Hz. Motor Size 1/2 HP. Factory Micron Rating 20 Microns. 1 Year warranty from Robinair.
Manufacturer: Robinair
Price Range: $324.90 - $517.95
 Two Stage Vacuum Pump - 6 CFM
|
| User Reviews |  | Great for Composites
rating: 4
This pump is working great for composite work, vacuum bagging. It pulls plenty of vacuum very fast and holds it for hours.
If the bag has a good seal this pump can be ran with no complaint however if there is only a slightest leak in the bag seal, this pump will smoke similar to a smoke machine at a discotech. The fine oil mist smoke will remain airborn for up to six hours. It is not designed to be an air pump, so just fix the seal on the bagged part and no worries.
I like the pump so far and feel it is a good value. I purchased the pump from [...] through Amazon.com and have had a great experience. Each order from them has been filled imeadiatelly and I have always received my orders many days ahead of schedule.
|
|
